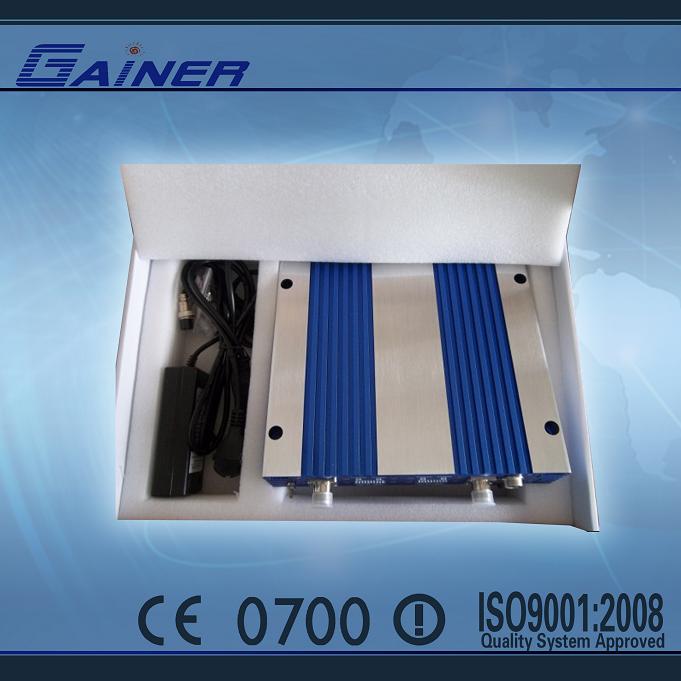

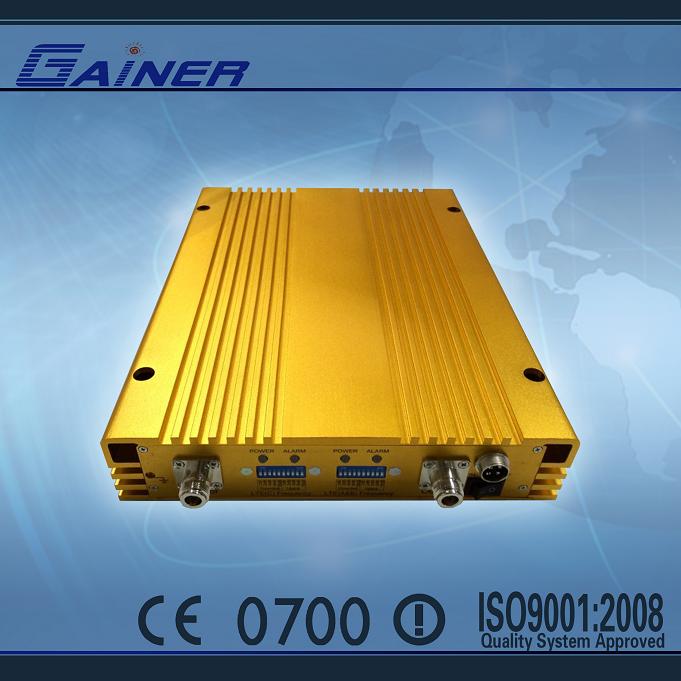

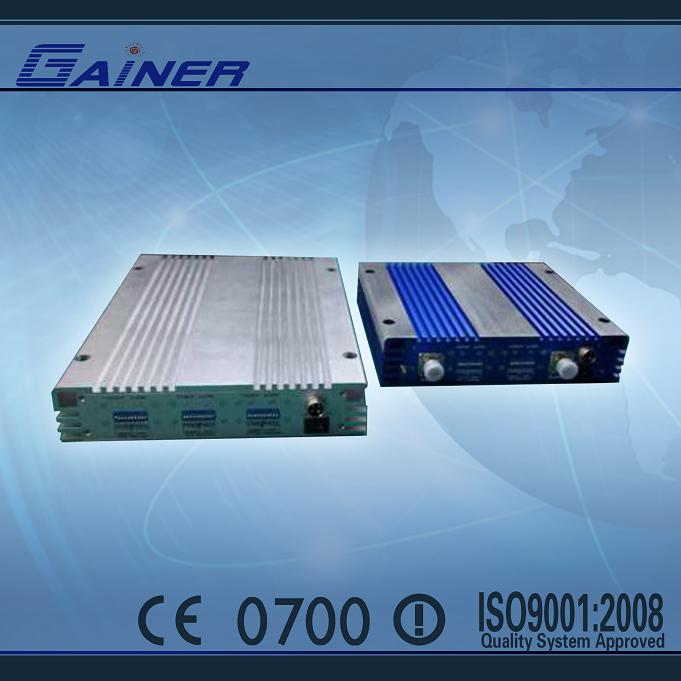

GSM/WCDM GSM/DCS Signal Repeater 27dBm
    Publish time 2014-03-27 15:36
GSM/WCDM GSM/DCS Signal Repeater 27dBm

Features:

1.The consumer repeater is an ideal solution for providing a cost effective improvement in cellular in-building coverage of a home, office, restaurant or building, in the quickest time possible.

2.Manual gain control (MGC) available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance

3.To maintain safe and specific output signal levels and give alarms on self-oscillation, the repeater has built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.

4.Auto shut off function available for both uplink and downlink to avoid deep self-oscilation from jamming the towers, saving your trouble from operators.

5.Multiple phones and other handheld devices throughout a building can benefit from a wireless repeater.

6.Supports up to (200) users / calls simultaneously.

7.Extended phone battery life. (Your phone does not need to put out as much power due to improved reception.)

Electrical specification   Uplink Downlink
Frequency Range GSM 890-915Mhz 935-960Mhz
WCDMA 1920 ~ 1980 MHz 2110 ~ 2170 MHz
Max .Gain F27-TB 70dB 75dB
Max .Output Power F27-TB 20dBm 27dBm
Band width (-3dB) Wide Band
MGC ( Step Attenuation ) ≥ 31dB / 1dB step
Automatic Level Control                               ≥ 15dB, auto shut off after 15dB
Gain Flatness GSM  6dB(P-P)
WCDMA ≤ 2dB/ 3.84MHz,Full Band≤ 5dB(P-P)
Noise Figure ≤ 8dB
VSWR ≤ 2.0
Group Delay ≤ 1.5μs
Frequency stability ≤ 0.01ppm
Spurious Emission &                                                            Output
inter-modulation
GSM Meet  ETSI TS 151 026 V 6.1.0
WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
CDMA Meet  IS95 & CDMA2000
WCDMA System  Spurious Emission Mask Meet 3GPP TS 25.143 ( V 6.2.0 )
Modulation Accuracy ≤ 12.5%
Peak Code Domain Error  ≤ -35dB@Spreading Factor 256
LED  Alarm Standard
Power LED Power Indicator
ALC LED 1 (Low frequency Band) Orange @ ALC 1~5dB, Red @ ALC 15dB~20dB,
LED off after 5 seconds red color
ALC LED 2 (High frequency Band) Orange @ ALC 1~5dB, Red @ ALC 15dB~20dB,
LED off after 5 seconds red color
Mechanical  Specifications Standard
I /O Port N-Female
Impedance  50 ohm
Operating Temperature -25ºC~+55ºC
Environment Conditions IP40
Dimensions 250x330x52mm
Weight around 5.5Kg
Power Supply Input AC90~264V,output DC10V / 7A
